12000 Bph Mineral Water Water Filling Machine

  • 1
  • 2

Brand Name : SUNRISE

Model Number : KSCGF

Certification : CE

Place of Origin : Siyang, Jiangsu

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 120 days

Packaging Details : paper box

Type : Filling Machine

Showroom Location : None

Application : Drinking water

Packaging Materia : Plastic

Machinery Capacity : 12000BPH

Filling Accuracy : ±1%

Name : Water Filling Machine Plant Complete Production Line

Function : Bottle Washing Filling Capping

Filling speed : 8000-36000bph(customized)

Filling Material : Water

Bottle shape : ound/square/flat

Control : PLC+Touch screen+Remote

Condition : New

Packaging Type : Bottles

Automatic Grade : Automatic

Voltage : According to customer requirement

Model Numbe : 8000 bottles per hour,12000 bottles per hour,15000 bottles per hour,18000 bottles per hour,24000 bottles per hour

Key Selling Points : Long Service Life

Warranty : 1 years

Processing type : Gravity filling

Bottle size : 200ml-2000ml

Bottle type : Plastic PET bottle

Material : SUS304/316

Filling material : nature mineral still drink water

Core Components : Motor, Pump, PLC, Gear, Bearing, Gearbox, Engine

Marketing Type : Hot Product

Contact Now

SUNRISE-AUTOMATIC COMPLETE WATER FILLING LINE

KEY FEATURES OF THE WATER FILLING MACHINE

KSCGF series bottle water filling machine is used to fill natural spring still water, mineral purified water, carbonated
water,flavored water into PET bottle; Glass bottle is also suitable, just need to change the conveyor parts.
● Different models can satisfy various requirement of output from 2000BPH to 36000BPH;Bottle volume application 200ml-2000ml.(Also can be customized according to requirements)
● The water bottling machine, combined with rinsing, filling and capping, it is mainly made of SUS304/ SUS316.
● Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan’s Mitsubishi, France Schneider, OMRON,ABB ;
● High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
● Screw capper adopts French advanced technologies which can screw cap promptly when clamping bottle
● Central greasing oil system can grease all bearings easily.
● Filling accuracy is more or less than 1%.
● We can provide complete beverage ideal solution - blowing. filling. packing for PET,PLASTIC,GLASS bottle.
● Easy to operate, save the cost for workers
.
12000 Bph Mineral Water Water Filling Machine
PACKAGE & SPECIFICATIONS
Full Automatic Complete PET bottle drink water Production Line( 8000-36000bph)
Gravity filling
Material
Shape
Filling volume
Filling level
(mm)
Neck type
PET Plastic Bottle
Square or Round
Bottle
200-2000ml
Distance from bottle neck
According to request
As request
Adjustable specifications of the bottle type
Bottle diameter ≤105mm Bottle Height≤335mm
Additional spare parts are needed for different volume bottles
Labeling & Packing System
Packing system
Palletizer
Hot Melt OPP Label
PVC Sleeve Shrink Label
Self-Adhesive Sticker Label
Full Label/ Half Label
Manual / Automatic
Packing system
Min, Spec.
Manual
Low position gantry palletizer
Robot Palletizer
High position gantry palletizer
Single Arm Palletizer
Manual Palletizer
Manual
Film shrink packing
Wrap Around packing
Robert Packing Machine
1*2
2*3
3*4
4*6
3*5
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Machines Details

12000 Bph Mineral Water Water Filling Machine

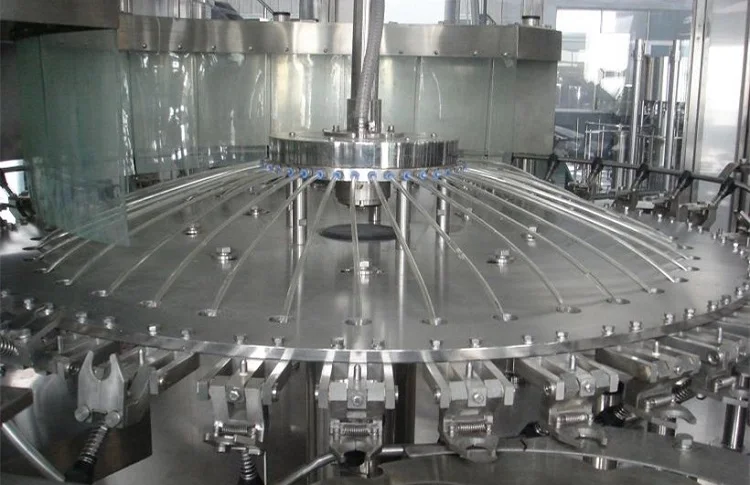

Washing heads

● Into bottle way is air conveyor direct connection with bottle dial.

● All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
● 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
● 304/316 stainless steel washing pump make the machine more durable.

Filling nozzles

● 304/316 Stainless steel high precision filling nozzle
● Filling volume adjustable in fine rank, same liquid level after filling
● All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
● 304/316 stainless steel filling pump
● Efficient spray nozzle rinse thoroughly and save water for flushing
12000 Bph Mineral Water Water Filling Machine
12000 Bph Mineral Water Water Filling Machine

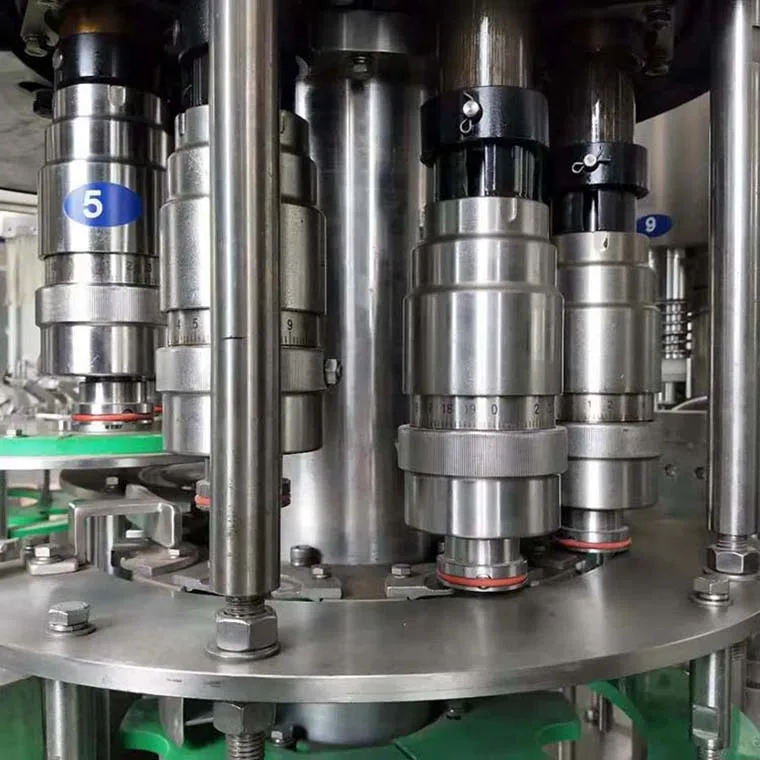

Screw cover capping heads

● Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
● All 304/316 stainless steel construction
● No bottle no capping
● Automatic stop when lack of bottle
Capping effect is stable and reliable, Defective rate ≤0.2%

Water treatment/purification system
Raw water tank + Raw water pump
Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
Reverse Osmosis (one level)
UV sterilizer
Finished water tank + Pure water pump
Stainless steel high pressure film shell
All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
Online type pressure auto self-protection device
Online type electricity indicator (with stable compensation)
System safe protecting and alarm system
System frame
